HandiMove Wall Lift Hoist

Category: Tag:


The outreach of the arm can be adjusted continuously and ensures an adequate lifting range.

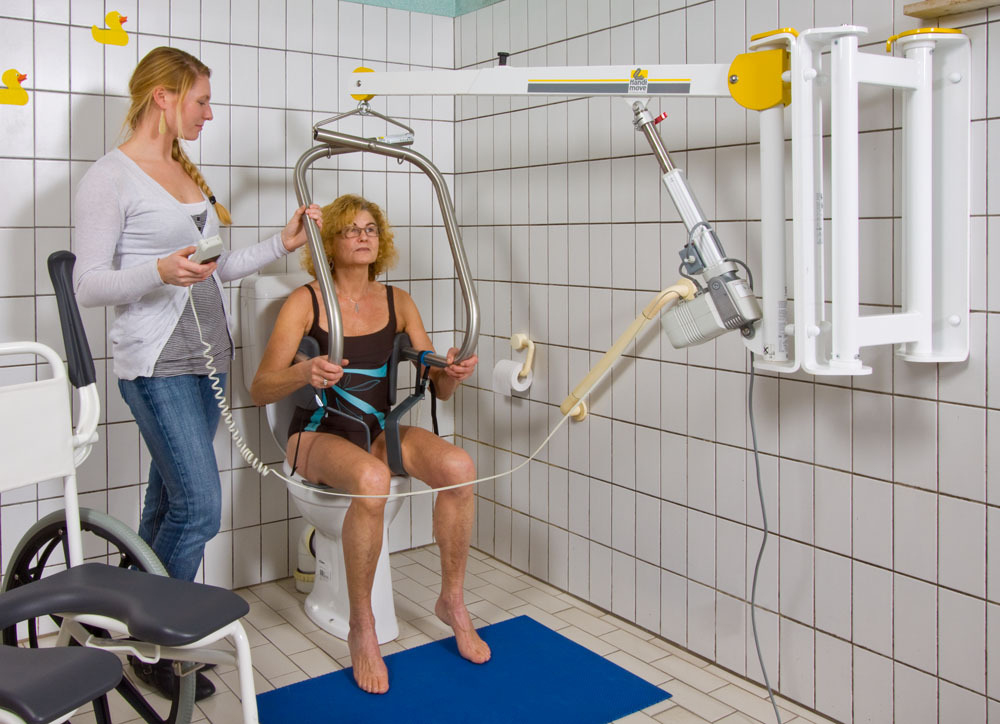

If the wall is not strong enough, the lift can also be fitted to a post between the floor and the ceiling. Click the link to see a wall lift case study using the floor post. The same wall lift can be used in different rooms. The wall lift can be used with a conventional sling, the seat sling or the Handi-Move body support.

The advantages of the wall lift:

Easy installation
Operates from the AC mains
Safe Working Load of 145kg
Built-in safety mechanism
Especially suitable where space is confined and it is not practical to use a ceiling or mobile hoist. If the structure of the wall is suitable, it can be fixed in a bedroom, living room or garage. It is also used in changing areas and to access spa pools, plunge pools and ball pools.

The Wall Lift has a telescopic arm which can increase the radius of its arc from 900-1300mm. The arm folds flat to the wall, taking up minimal space when not in use. It can cover an area similar to a 2m length of ceiling track.


Lift range at min: 950mm.
Extension: 680mm.
Lift range at max: 1300mm.
Extension: 980mm.
Wall plate: 687 x 140mm.
Price is for supply only. Installation costs are available on request.


Reference Documents

Wall Lift Dolphin HotTub
Wall Lift Dolphin
Wall Lift Architectural Info
Install Walllift Installation EN
Wall Lift Instructions
Wall Lift User Guide
